HB2015 Deadbolt 30mm Backset for Hinge, Pivot and Bi-Fold Doors

Designed for use as a stand alone lock in narrow stile swing doors, or with your choice of handles, on timber or aluminium.

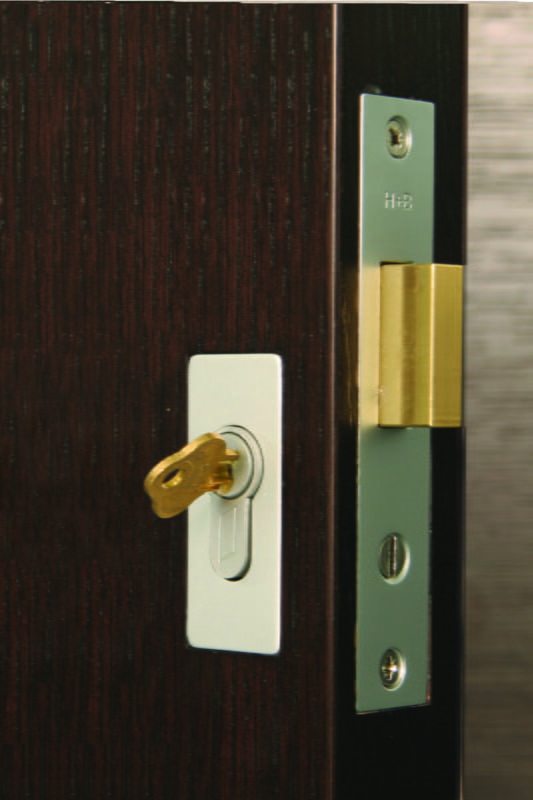

The HB2015 PZW Deadbolt is a narrow 30mm backset deadbolt lock that can be used in the standard manner, or where two large doors pass across each other and can be locked in the ‘overlap’.

The HB2015 is specifically designed for hinge, bi-fold, or pivot doors, however the sister product, the HB2015 utilises the same case dimensions but with two prong locking claws suitable for sliding doors.

Escutcheons and cylinder sold separately. Cylinder length required will depend on door thickness.

Material: Diecast zinc and brass

Backset: 30mm

Case Depth: 42mm from inside face plate.

For finish options please see our current Finishes Sheet. Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.
