HB1010 / 250 Frameless Extract/Ventilation Grill

HB1010/250 Frameless Square Grill for flush mounting to ceiling plaster board (10mm or 13mm), where venting is required.

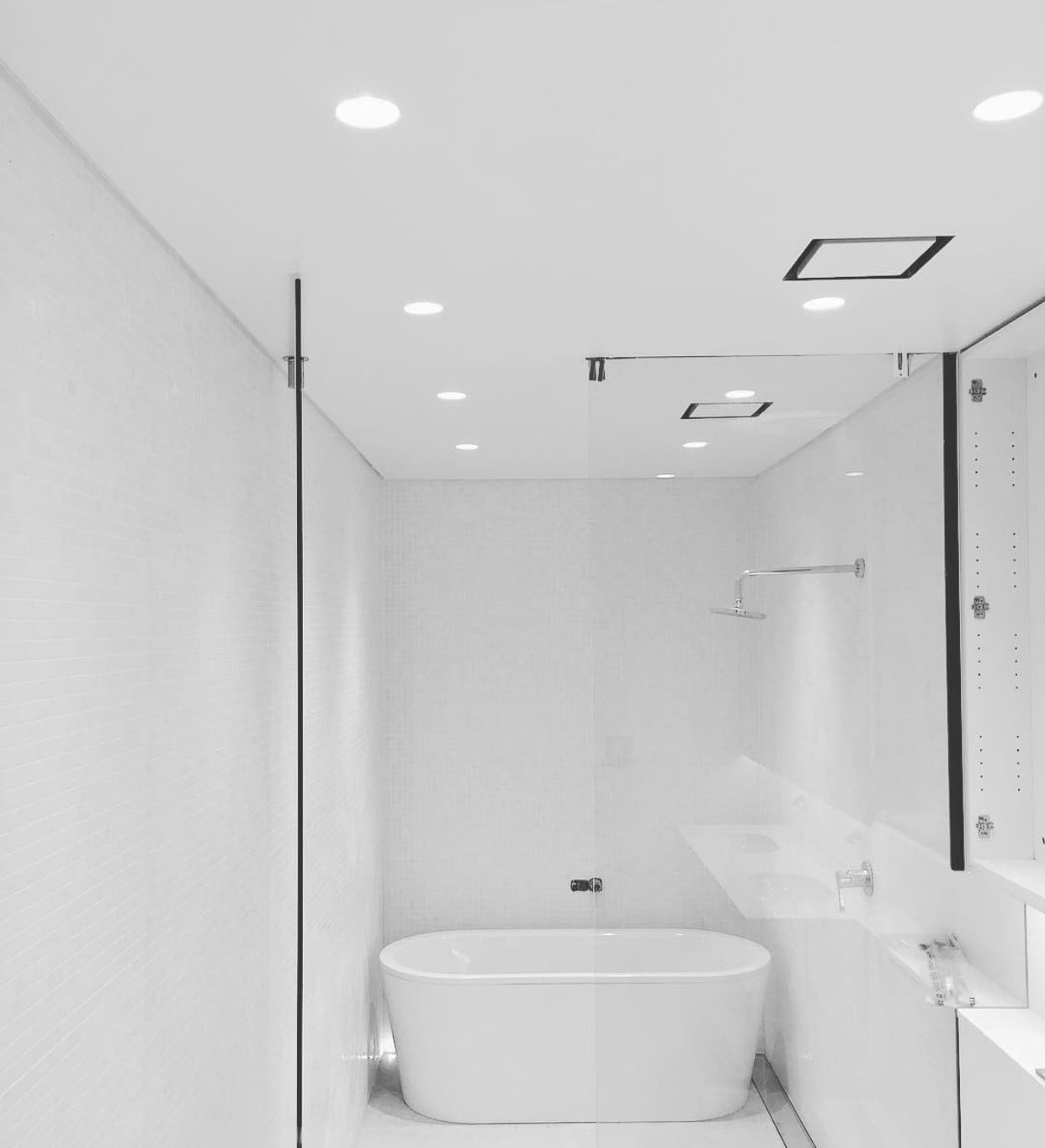

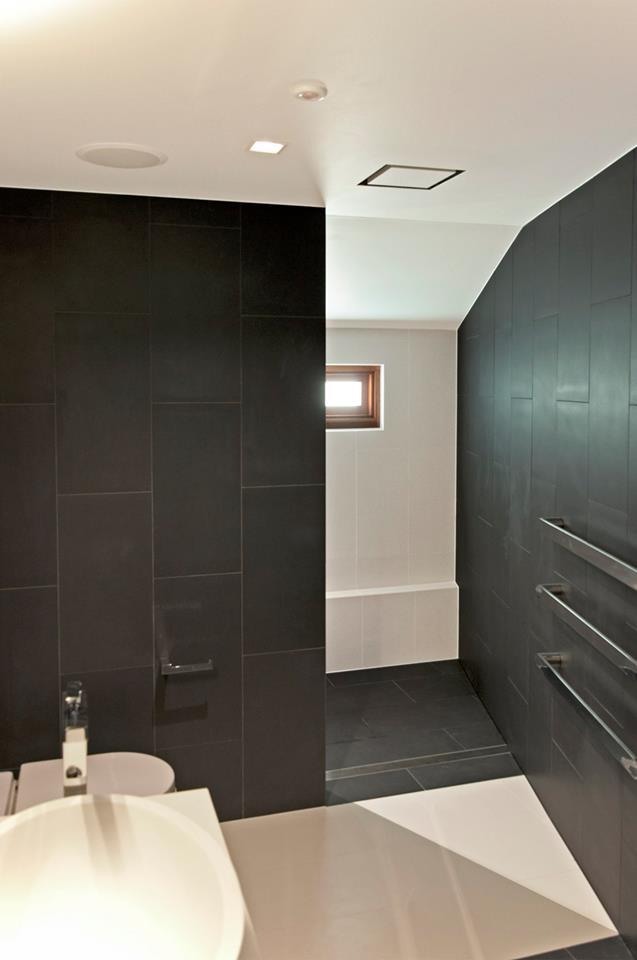

The square grill is ideal for bathrooms and laundries as a sleeker alternative to standard plastic overs. The black negative detail allows for a contemporary square stopped finish.

The framework is square stopped into the ceiling/wall and central plaque fixings are not seen.

Once the unit is plastered in place the flexible duct is pulled down through the hidden frame and attached to the spigot at the back of the central plaque. The white powder coated surface of the plaque is level with the ceiling and can be lightly sanded and repainted to match the ceiling colour if required.

Size : 250mm x 250mm overall, with conduit that fits most standard ducting (150mm spigot).Finish: Steel centre panel (Appliance White as standard), with black powder coated internal housing.

Please note: grill set only – ducting and fan systems not included.

Flow rate is 60-70 litres per second, pressure drop is 26 pa.
