- / Product overview

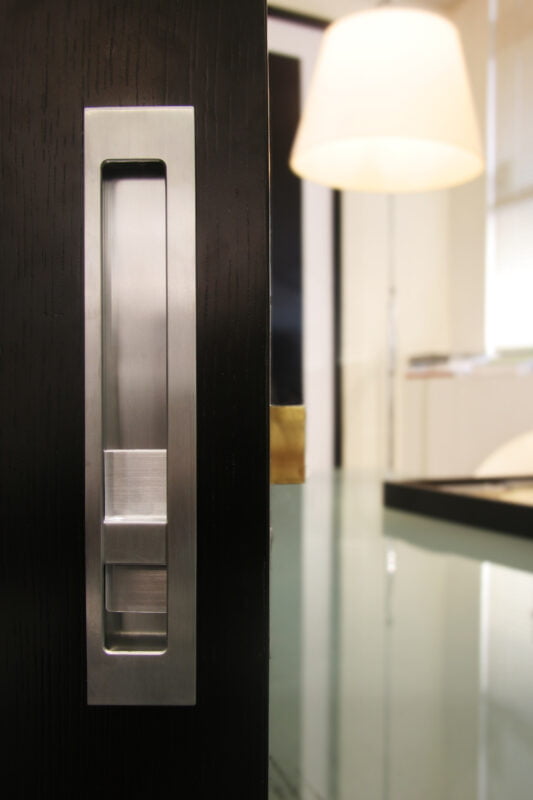

HB1650 D 250mm Offset Flush Pull Lock for Hinge and Pivot Doors - 55mm Backset
The HB1650 D Series has been developed to work on pivot, hinge and bi-fold doors.
All HB1650D come as left or right handed sets, with various functions including a privacy option. See below for order code and function details.
The matching HB1650 Series with claw sliding bolt functions on sliding doors and in a bi-fold capacity.
Material: Zinc die cast and brass
Backset : 2.17″
Minimum door thickness : 1.77″
Flush pulls : 9.84″ x 1.81″ x 0.67″
Internal grip depth : 0.59″
Suitable for timber or aluminum doors of suitable thickness.
For finish options please see our current Finishes Sheet. Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.
Flush pulls are designed to be mounted with the body within the thickness of the door, and the face surface mounted – total projection is 2mm. Fully recessed mounting is possible on timber doors with the appropriate door thickness. Using glue, epoxy or silicone products etc to secure flush pulls to the door is not required or recommended for installation, and may void warrantee. Glue, epoxy, or silicone products can be used to secure the spindle slide to the back of the snib flush pull for example where sets have a flush pull to one side only.
Configurations:
HB1650 – Deadbolt Privacy Set, Snib In, Emergency Release Out, HB691 Body
HB1656 – Deadbolt Snib Inside, Blank Out, HB691 Body
HB1657 – Deadbolt Snib Inside, Nothing Out, HB691 Body
HB1658 – Deadbolt Snib Both Sides, HB691 Body
