HB638 Sliding Door Lock – 55mm Backset with Integrated End Pull

The HB638 Series provides various locking configurations with the addition of a finger pull in the forend of the lock body.

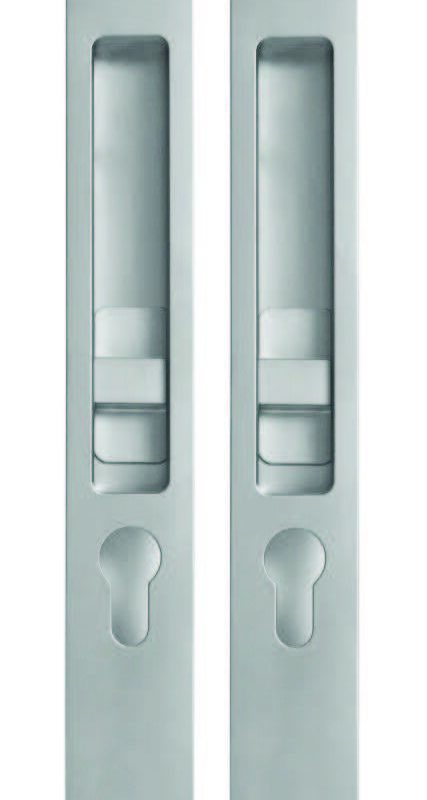

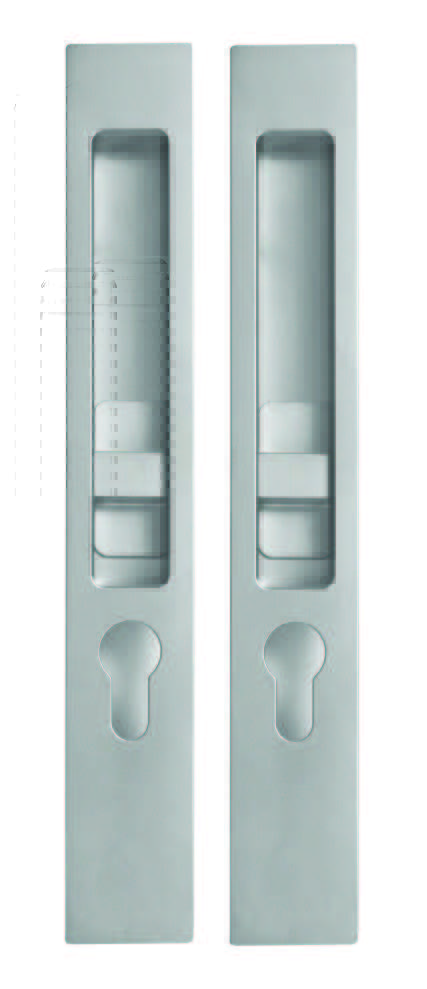

Halliday + Baillie Key Lock Sliding System with integrated Finger Pull. The HB638 Series provides various locking configurations with the addition of a finger pull in the forend of the lock body. The HB638 Set comes with a key and snib flush pull to both sides of the door. Cylinders can be ordered separately with confirmation of the door thickness.

Please note that the “HB630 Series” denotes the type of lock body used with various flush pull configurations. The “HB630” set has a key and snib both sides, and is one possible configuration in the series.

Material: Diecast zinc with brass and 316 stainless steel

Backset : 55mm

Minimum door thickness : 38mm

Flush pulls : 250mm x 36mm x 13mm

Suitable for timber or aluminium doors with wide stiles.

For finish options please see our current Finishes Sheet. Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.

Flush pulls are designed to be mounted with the body within the thickness of the door, and the face plate on the door surface – total projection is 2mm. Fully recessed mounting is possible on timber doors with the appropriate door thickness. Using glue, epoxy or silicone products etc to secure flush pulls to the door is not required or recommended for installation, and may void warrantee. Glue, epoxy, or silicone products can be used to secure the spindle bar to the back of the snib flush pull for example where sets have a flush pull to one side only.

Configurations:
HB 638 – Key and Snib Both Sides
HB 637 – Key Snib In, Blank Out
HB 636 – Key Snib In, No Pull Out
