- / Product overview

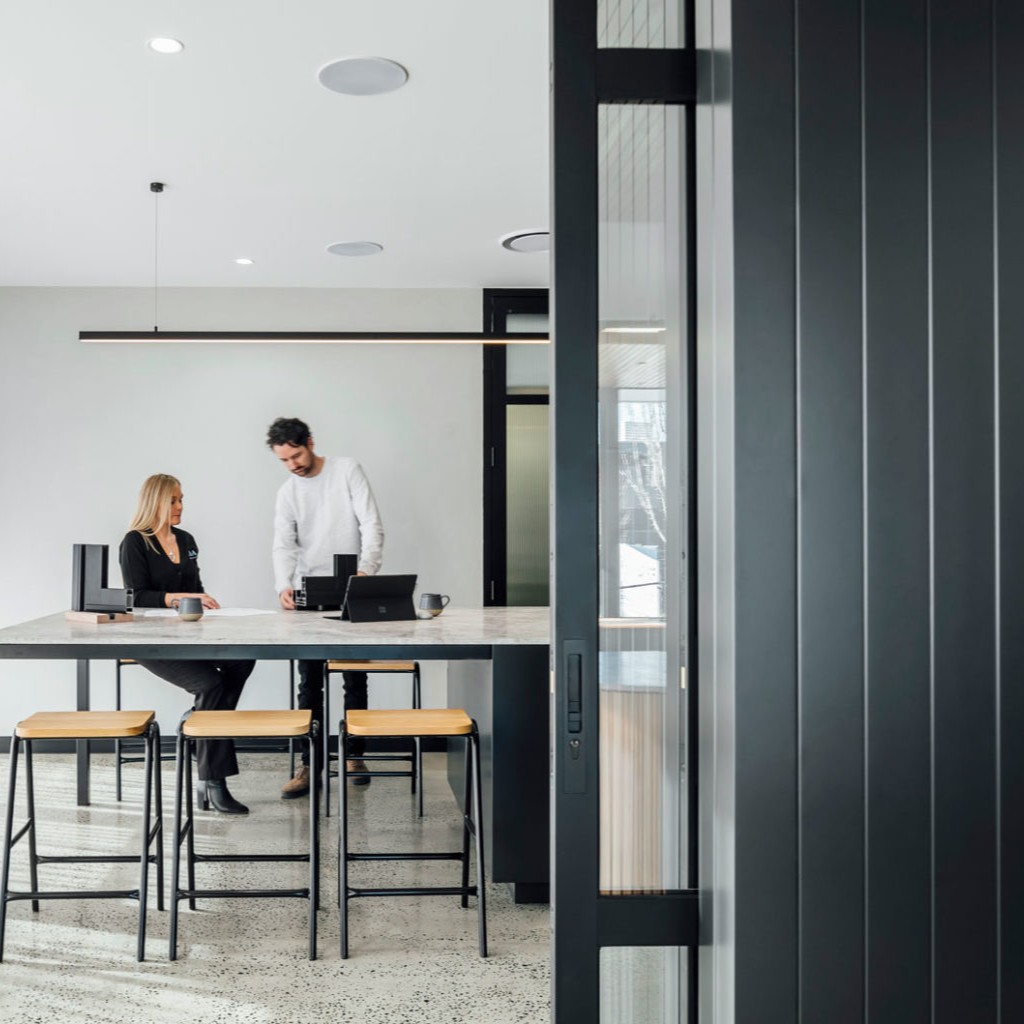

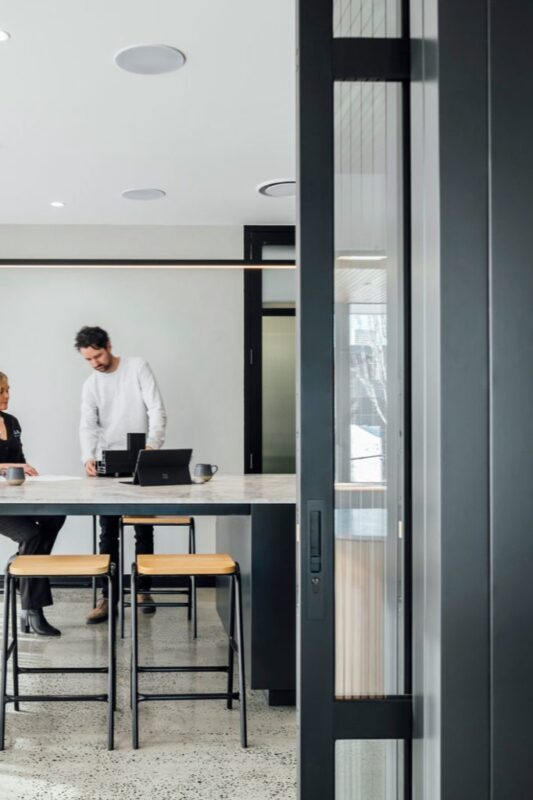

HB642 Narrow Sliding Door Lock – 33mm Backset
The HB642 is a configuration of the HB640 lock with a snib and key on the inside and a matching blank flush pull on the outside on a narrow 33mm backset sliding lock body.
Cylinders to be ordered separately with confirmation of the door thickness for order.
Material: Diecast zinc with brass and 316 stainless steel
Backset : 33mm
Minimum door thickness : 38mm
Flush pulls : 250mm x 36mm x 13mm
Suitable for timber or aluminium doors
For finish options please see our current Finishes Sheet. Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.
Flush pulls are designed to be mounted with the body within the thickness of the door, and the face plate on the door surface – total projection is 2mm. Fully recessed mounting is possible on timber doors with the appropriate door thickness. Using glue, epoxy or silicone products etc to secure flush pulls to the door is not required or recommended for installation, and may void warrantee. Glue, epoxy, or silicone products can be used to secure the spindle bar to the back of the snib flush pull for example where sets have a flush pull to one side only.
Configurations:
HB 640 – Key and Snib Both Sides
HB 642 – Key Snib In, Blank Out
HB 643 – Key Snib In, No Pull Out
HB 648 – HB665 Snib, One Side, No Pull Outside
HB 649 – HB660 Snib One Side, No Pull Outside
HB 649/2 – HB660 Snib Inside, Blank HB660 Pull Outside
